The full plans for TRO 17/91 and RSO 18/05 are very detailed, so we have annotated excerpts below to show the key points. You can find the full plans on the Council's Traffic Orders page from 20th April 2018. You can also look at these visualisations to get an impression of what it will be like.
1. West end of Roseburn Terrace and Old Colt Bridge area.

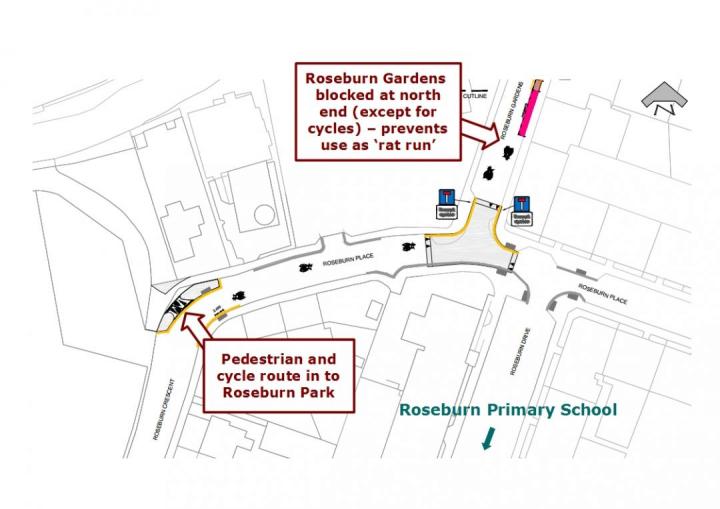

2. Roseburn Gardens and entrance to the park.

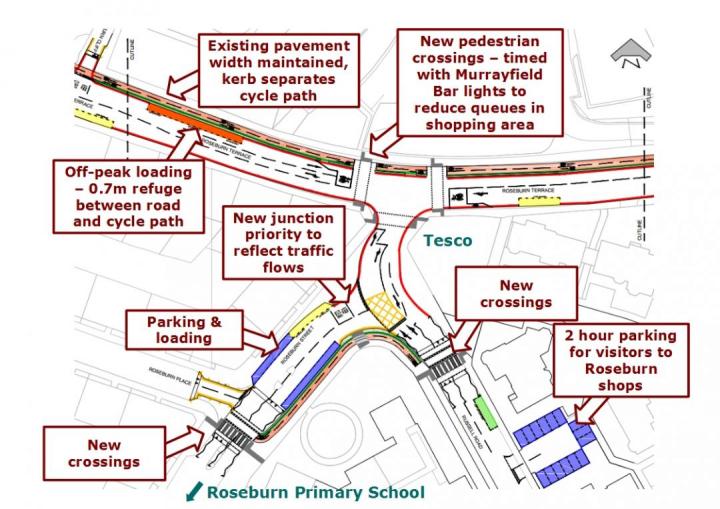

3. East end of Roseburn Terrace and Roseburn Street junction.
All plans taken from City of Edinburgh Council TRO 17/91.
